DELUXE FEATURES AT AN UNBEATABLE VALUE!
The American Hauler ARROW DELUXE is the entry-level trailer you know, built with the popular features you love. It delivers dependable, low-maintenance performance while offering many of the premium upgrades typically found on higher-end models. Designed for durability and versatility, the ARROW DELUXE is ready to handle a wide range of hauling needs with confidence. Whether you’re transporting equipment, UTV's, or personal belongings, you can rely on it to keep your cargo safe, secure, and protected every mile of the journey.
Standard Features, Specifications and Available Options subject to change without notice.

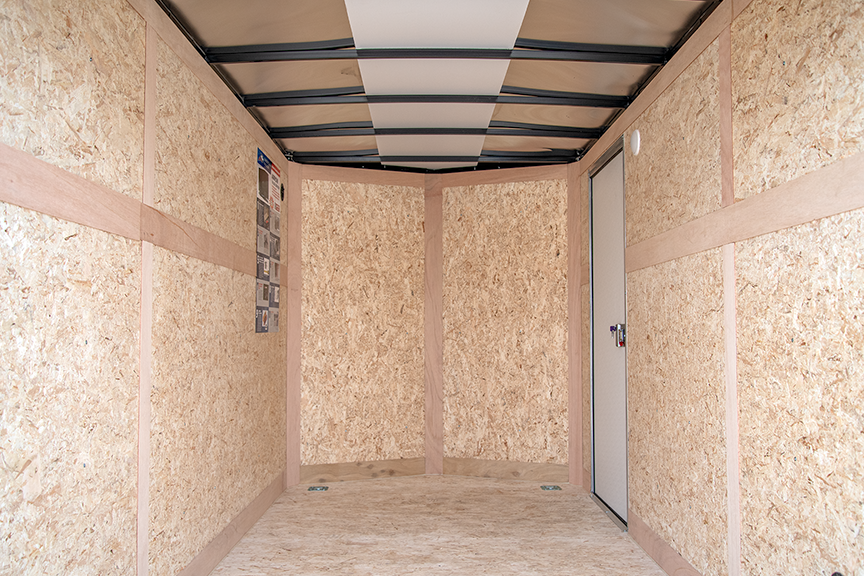

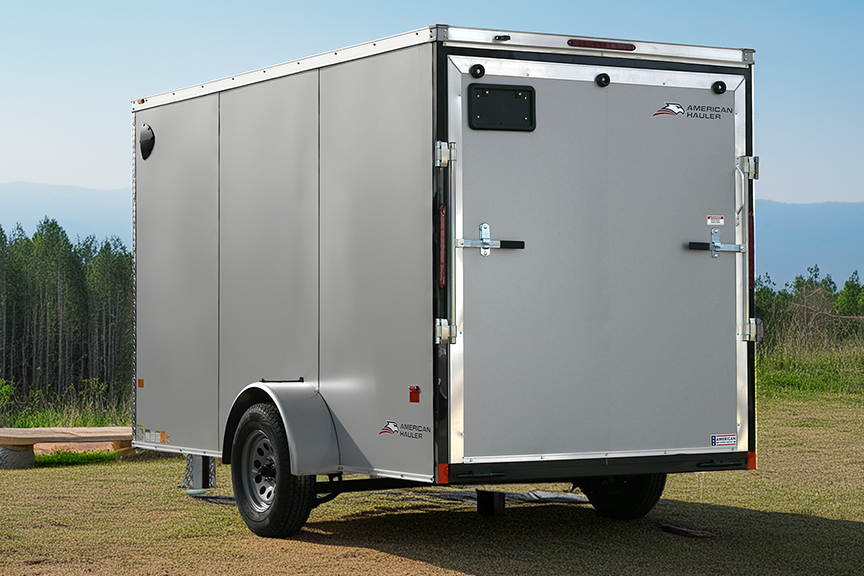

Gallery
| Model Number | AR58SA-D | AR612SA-D | AR714TA2-D | AR716TA2-D |
| Overall Length | 11' 4" | 16' 0" | 18'0" | 20'0" |
| Overall Width | 6' 8" | 7' 8" | 8' 6" | 8' 6" |
| Overall Height | 7' 1" | 8' 1" | 8' 2" | 8' 2" |
| Interior Length | 9' 1" | 13' 1" | 15' 1" | 17'1" |
| Interior Width | 4' 9" | 5' 9" | 6' 9" | 6' 9" |
| Interior Height | 5' 6' | 6' 6" | 6' 6" | 6' 6" |
| Side Door | Optional | Standard | Standard | Standard |
| Side Door Width | N/A | 32" | 32" | 32" |
| Rear Doors | Rear Single Swing Door | Rear Ramp Door | Rear Ramp Door | Rear Ramp Door |
| Rear Door Width | 54" | 66" | 78" | 78" |
| Rear Door Height | 60" | 72" | 72" | 72" |
| Hitch Weight (% of Curb Weight) | 10% to 15% | 10% to 15% | 10% to 15% | 10% to 15% |
| Hitch Height | 16" | 16" | 17" | 17" |
| Ball Size | 2" | 2" | 2-5/16" | 2-5/16" |
| Platform Height | 17" | 17" | 18" | 18" |
| Axle Type | Spring | Spring | Spring | Spring |
| Axle Quantity | Single | Single | Tandem | Tandem |
| GVWR | 2,990 lb. | 2,990 lb. | 7,000 lb. | 7,000 lb. |
| Curb Weight | 900 lb. | 1,285 lb. | 2,260 lb. | 2,420 lb. |
| Payload Capacity | 2,090 lb. | 1,705 lb. | 4,740 lb. | 4,580 lb. |
| Brakes | N/A | Optional | Electric | Electric |
| Tires | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C |
| Wheels | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt |
| Main Rails | 2" x 3" Tube | 2" x 3" Tube | 2" x 4" Tube | 2" x 4" Tube |
| Floor | 3/4" PlexCore | 3/4" PlexCore | 3/4" PlexCore | 3/4" PlexCore |
| Side Walls | 3/8" Plexcore Liner | 3/8" Plexcore Liner | 3/8" Plexcore Liner | 3/8" Plexcore Liner |
| 12v Connector | 4-Way | 4-Way | 7-Way | 7-Way |
