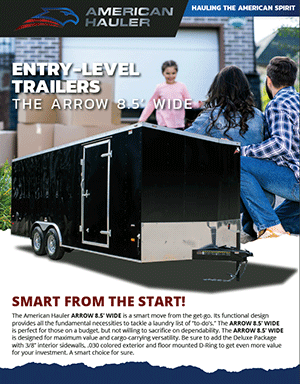

SMART FROM THE START!

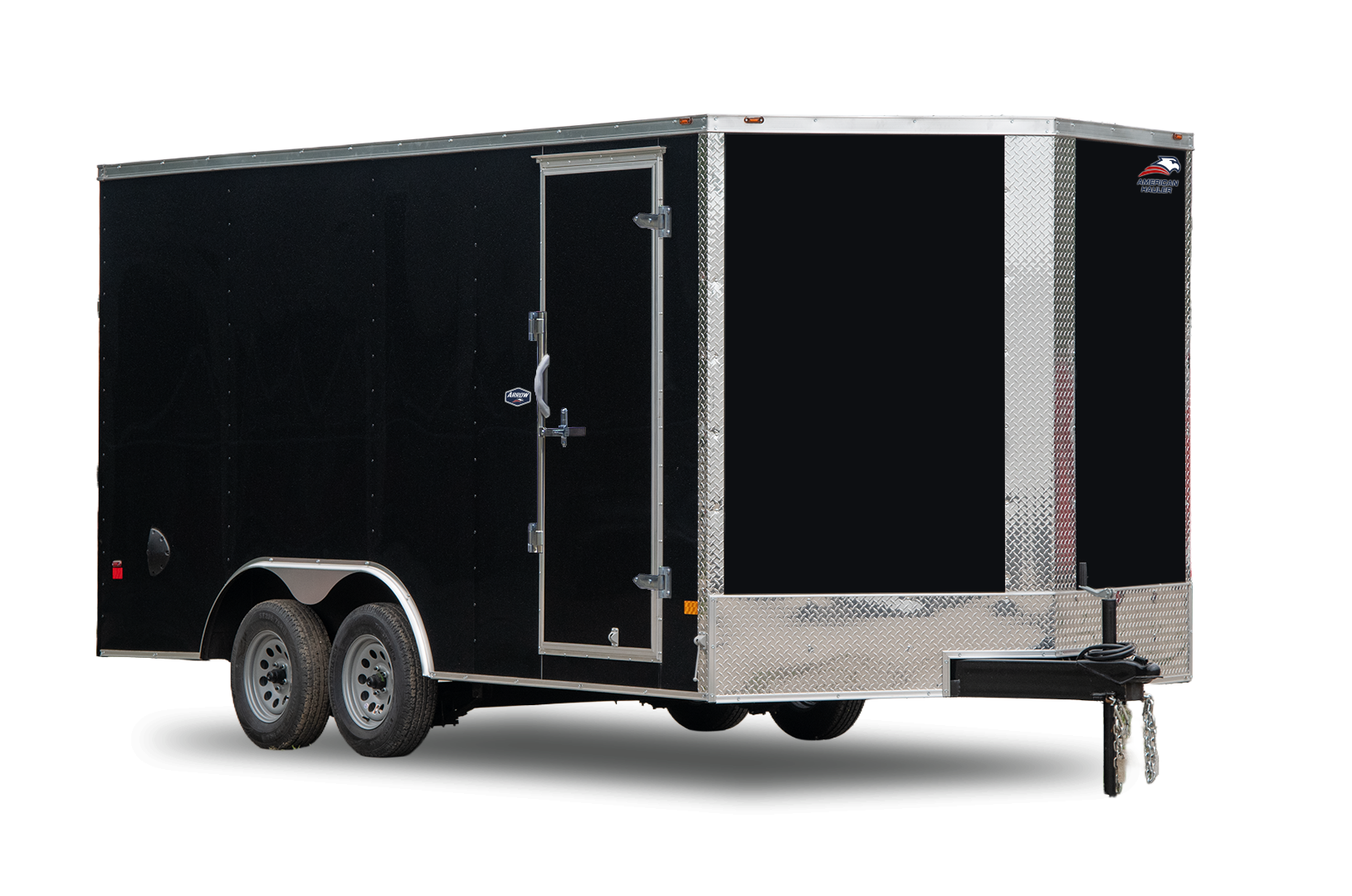

The American Hauler ARROW 8.5’ WIDE is a smart move from the get-go. Its functional design provides all the fundamental necessities to tackle a laundry list of “to-do’s.” The ARROW 8.5’ WIDE is perfect for those on a budget, but not willing to sacrifice on dependability. The ARROW 8.5’ WIDE is designed for maximum value and cargo-carrying versatility. Be sure to add the Deluxe Package with 3/8” interior sidewalls, .030 colored exterior, and floor mounted D-Ring to get even more value for your investment. A smart choice for sure.
Standard Features, Specifications and Available Options subject to change without notice.
Gallery
| Model Number |
AR8516TA2 | AR8520TA2 | AR8524TA3 |
| Body Length | 18' 0" | 22' 0" | 26' 0" |
| Body Width | 8' 4" | 8' 4" | 8' 4" |
| Overall Length | 20' 0" | 24' 0" | 28' 0" |
| Overall Width | 8' 6" | 8' 6" | 8' 6" |
| Overall Height | 8' 3" | 8' 3" | 8' 3" |
| Interior Length | 17' 9" | 21' 9" | 25' 9" |
| Interior Width | 8' 1" | 8' 1" | 8' 1" |
| Interior Height | 6' 6" | 6' 6" | 6' 6" |
| Width Between Wheel Boxes | 83" | 83" | 83" |
| Axle Type | Spring w/ 4" Drop | Spring w/ 4" Drop | Spring w/ 4" Drop |
| Axle Quantity | Tandem | Tandem | Tandem |
| Brakes | Electric Drum (both axles) | Electric Drum (both axles) | Electric Drum (both axles) |
| Side Door | Bar Lock | Bar Lock | Bar Lock |
| Side Door Width | 32" | 32" | 32" |

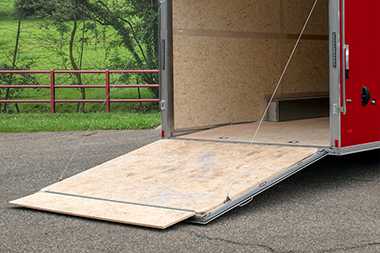

| Rear Doors | Ramp | Ramp | Ramp |
| Rear Door Width | 94" | 94" | 94" |
| Rear Door Height | 72" | 72" | 72" |
| Hitch Weight (% of Curb Weight) | 10% - 15% | 10% - 15% | 10% - 15% |
| Hitch Height | 20" | 20" | 20" |
| Ball Size | 2-5/16" | 2-5/16" | 2-5/16" |
| Platform Height | 19" | 19" | 19" |
| GVWR | 7,000 lbs | 7,000 lbs | 9,990 lbs |
| Curb Weight | 2,485 lbs | 2,975 lbs | 3,605 lbs |
| Payload Capacity | 4,515 lbs | 4,025 lbs | 6,385 lbs |
| Brakes | Electric | Electric | Electric |

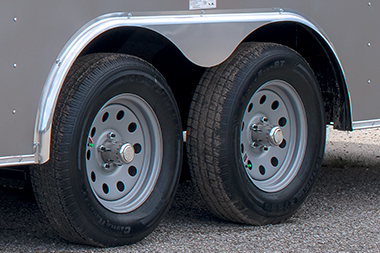

| Tires | ST205/75R15/C | ST205/75R15/C | ST225/75R15/D |
| Wheels | Silver Steel Mod | Silver Steel Mod | Silver Steel Mod |
| Frame | 2" x 6" Tube | 2" x 6" Tube | 2" x 6" Tube |
| Floor | 3/4" PlexCore Flooring | 3/4" PlexCore Flooring | 3/4" PlexCore Flooring |

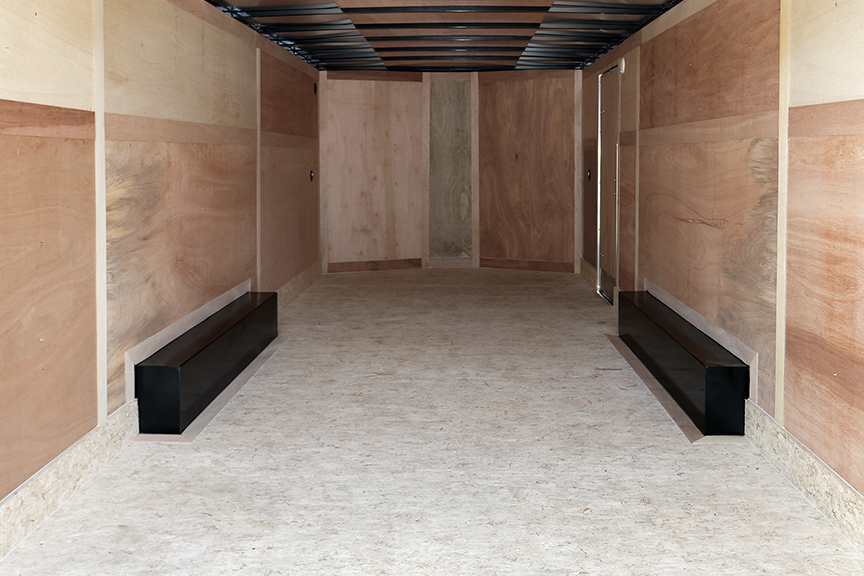

| Side Walls | 3/8" PlexCore Liner | 3/8" PlexCore Liner | 3/8" PlexCore Liner |
