A STRAIGHT SHOT TO A GREAT VALUE!

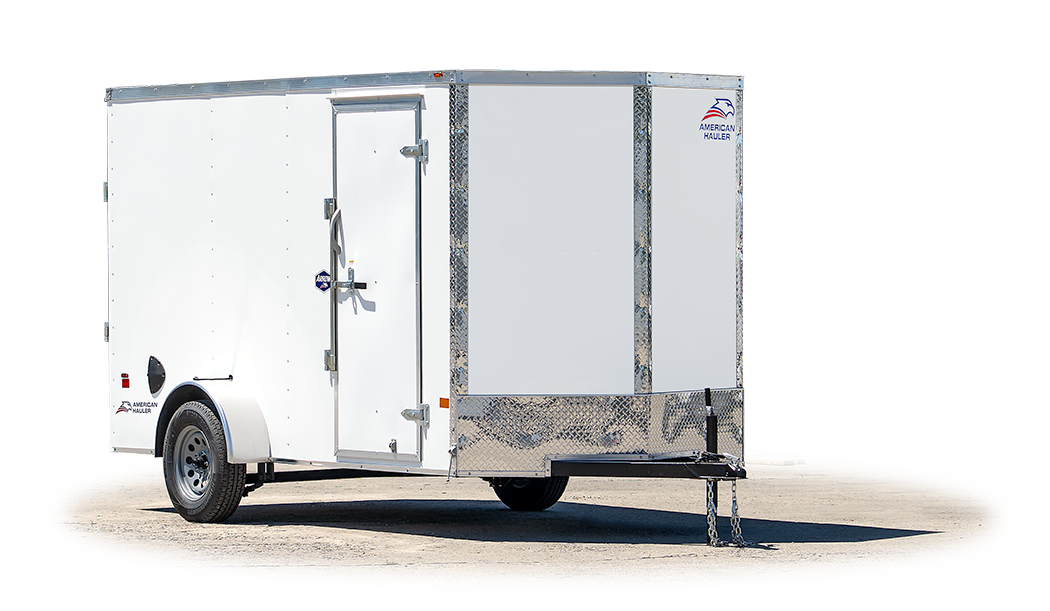

The American Hauler ARROW is your path to dependable and low-maintenance cargo hauling that won’t break the bank. It’s a perfect fit for recreational and light-duty applications. Although classified as an “entry level” trailer, the ARROW is loaded with quality features found on much more expensive trailers. No matter your hauling needs . . . count on the ARROW to deliver your valuables safe and secure to your final destination.
Standard Features, Specifications and Available Options subject to change without notice.
Gallery
| Model Number | AR58SA | AR612SA | AR714TA2 | AR716TA2 |
| Overall Length | 11' 4" | 16' 0" | 18'0" | 20'0" |
| Overall Width | 6' 8" | 7' 8" | 8' 6" | 8' 6" |
| Overall Height | 7' 1" | 8' 1" | 8' 2" | 8' 2" |
| Interior Length | 9' 1" | 13' 1" | 15' 1" | 17'1" |
| Interior Width | 4' 9" | 5' 9" | 6' 9" | 6' 9" |
| Interior Height | 5' 6' | 6' 6" | 6' 6" | 6' 6" |
| Side Door | Optional | Standard | Standard | Standard |
| Side Door Width | N/A | 32" | 32" | 32" |
| Rear Doors | Rear Single Swing Door | Rear Ramp Door | Rear Ramp Door | Rear Ramp Door |
| Rear Door Width | 54" | 66" | 78" | 78" |
| Rear Door Height | 60" | 72" | 72" | 72" |
| Hitch Weight (% of Curb Weight) | 10% to 15% | 10% to 15% | 10% to 15% | 10% to 15% |
| Hitch Height | 16" | 16" | 17" | 17" |
| Ball Size | 2" | 2" | 2-5/16" | 2-5/16" |
| Platform Height | 17" | 17" | 18" | 18" |
| Axle Type | Spring | Spring | Spring | Spring |
| Axle Quantity | Single | Single | Tandem | Tandem |
| GVWR | 2,990 lb. | 2,990 lb. | 7,000 lb. | 7,000 lb. |
| Curb Weight | 965 lb. | 1,225 lb. | 1,955 lb. | 2,115 lb. |
| Payload Capacity | 2,025 lb. | 1,765 lb. | 5,045 lb. | 4,885 lb. |
| Brakes | N/A | Optional | Electric | Electric |

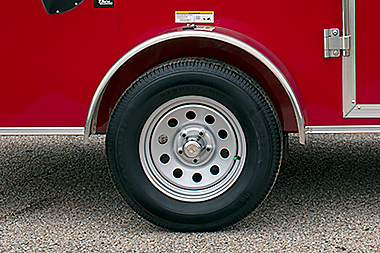

| Tires | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C |
| Wheels | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt |
| Main Rails | 2" x 3" Tube | 2" x 3" Tube | 2" x 4" Tube | 2" x 4" Tube |
| Floor | 3/4" PlexCore | 3/4" PlexCore | 3/4" PlexCore | 3/4" PlexCore |
| Side Walls | Economy Sidewall Liner | Economy Sidewall Liner | Economy Sidewall Liner | Economy Sidewall Liner |
| 12v Connector | 4-Way | 4-Way | 7-Way | 7-Way |
